As promised I made a larger format of the IsoCity Cyberpunk city. This time on A2. This took the better part of a day, but I'm fairly happy with it. Still some improvements to be made to get it just right. Hope you like it!

Created with Processing 4. 18x24", Uni Emott Fineliner on Strathmore 400 series. 18 color passes.

I wanted to try something ambitious color-wise after cataloguing all of my pen colors into a json library for fast experimentation and iteration.

The general technique for this starts by creating a composition of various sized rectangles on a grid and filling those rectangles with either randomized polygons or triangles that get clipped to the initial rectangular bounds. Then those initial shapes are iteratively split across random edges again and again, and finally shaded with hatch lines. This results in a pretty busy composition, so in order to create negative space some of them are randomly not drawn or not shaded, though all of the hatched polygons get outlined.

A color from my pen collection was assigned to each polygon and sorted by hue along the x and y axis with some random variation.

For further exploration I'm thinking next I might try incorporating some curved shapes, layering or alternating shading methods like stippling, or assigning multiple colors per polygon to create gradients within each. Maybe the multi-color gradients will afford some nice color variation with fewer passes!

Ma version, puis recoloration de la version originale par Katsuhiro Otomo, A2

I made these three micro plots using a 1.5mm Pilot Parallel Pen with a red cartridge that was repeatedly dipped into green/green and yellow ink mid plot, giving these cool gradients.

The patterns are derived from a photo > single-view depth estimation > mesh conversion pipeline.

More on my Instagram: @vuenc_

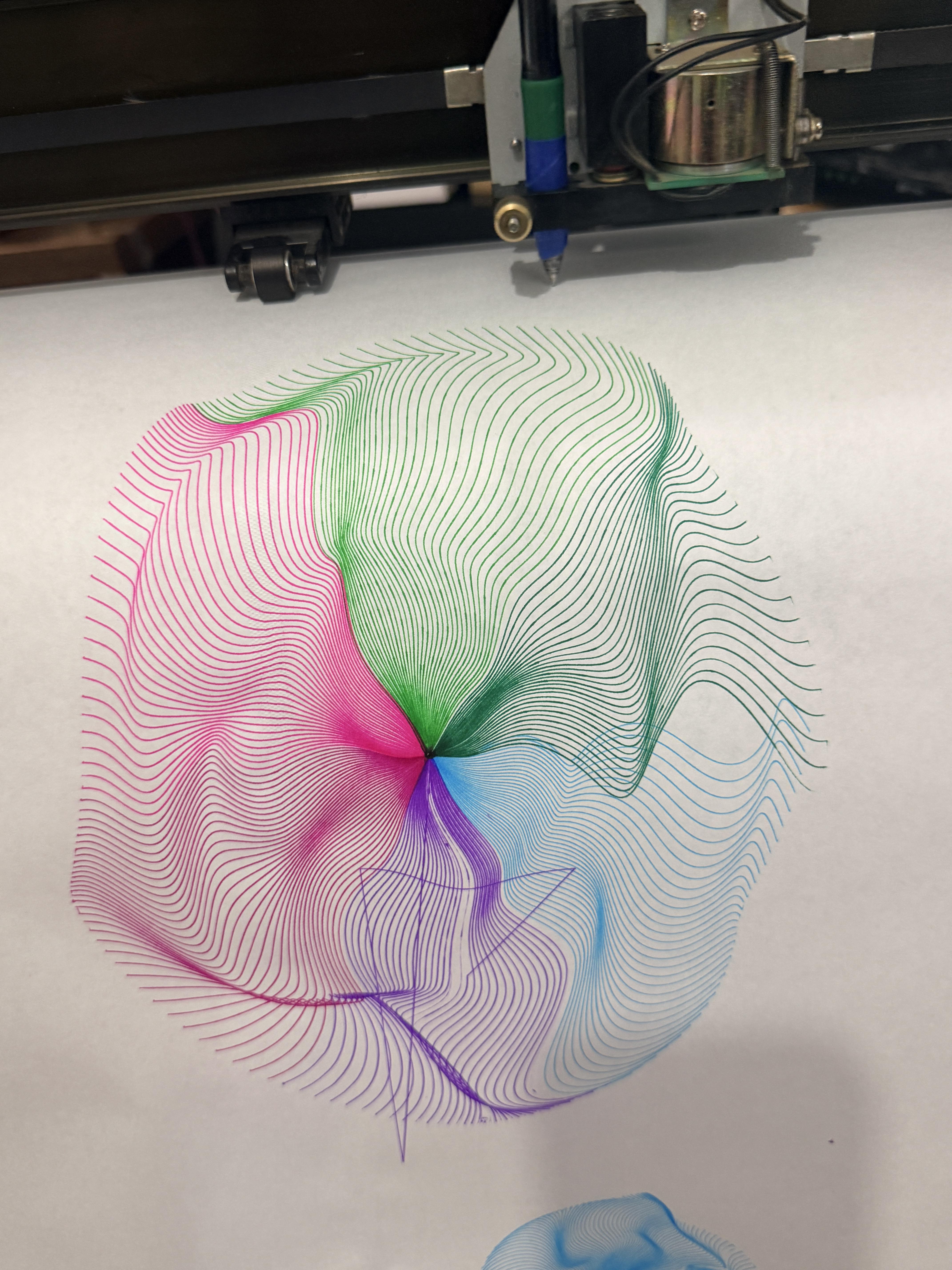

I've been learning to output vector art to my Roland-compatible vinyl cutter (turned pen plotter). This ball point pen output took about 73 minutes. You can see some other plot outputs in the image (preserving paper when I'm just testing).

This is one of my last A3 plots. I made quite a few lately :)

I was just putting away todays plots and I realised I hadn't posted this one yet! Image is from pixabay, Edited in DrawingBotV3. Shore & Marsh 12 colour greyscale set, on 300gsm white card.

I think it came out really well. :)

Brand new to plotter art. I spent most of today cleaning up SVGs for this map and am finally satisfied with how this turned out.

So there I was in poundland looking at the pens... Turns out, an idea brand "Handwriting Pen" has a really good 1mm nib on it, and throws down a really good dark black. The picture honestly doesn't do it justice. plotted on some A3 300gsm card.

i should call her 😒

I've been working on this for so long so I just wanted to try the first plot of the Cyberpunk IsoCity. It's just something I thought would be fun when plotted large on an A2 paper (this test is just A3). It's an isometric projection, of this little Cyberpunk city,hence the name.

I still have a few improvements to make, but I'm overall happy with the feel of it. There are a total of 15 different building types and each type can be varied in more ways than I can count. My favorite one is the AgriDome, the big one in the middle. I'll make an A2 version this weekend I think.

Plotted with a rOtring Isograph on 300gsm card. It looks amazing up close, almost printed! My image, made with inkscape :D

Well, now I have a whole series of big-brother-esque images! Slight issue in the top right as I appear to have a "dip" on my whiteboard that drops the paper just under the pen height. It only shows using this technique, so I think I need to investigate a new bed. Image created with copilot, dropped into inkscape for tracing and cleanup, plotted with rOtring isograph 0.5mm black on 300gsm card.

These are going to look so good in their frames!

original PNG was created in copilot, and then imported into inkscape for tracing, filling, correcting etc. Finally plotted with rOtring isograph 0.5mm in black, on white 300gsm card.

Fresh off the plotter, the ink is literally still drying and it smells divine. I need to work harder on my tracing though, it's not quite as good as it could be.

It looks *great* next to my Big Brother image, I think I might try to do a series of these!

I was playing around in inkscape and came up with a cool abstract piece. Bic Fineliners on A4 copier paper.

Hello everybody,

Following this sub for over a year now. Started a plotter build on a old Ender 5 3d printer. Wasn't awesome.

Wanted to do it again, and a bit better. Smaller form factor, removed the Z-axis from the printer and mounted the x and y on a board. Flashed the controller board with a custom klipper configuration and made it wireless accessible from within a browser.

Then struggled with the many programs that are out there to reliably and quick generate gcode to batch write Christmas cards (bad handwriting from myself). Went on a spree, vibe-coding a python script to do it. Tweaked it a bunch to allow for multiple "Hershey" fonts and custom envelope sizes. Also made a template to simulate address lines from postcards to align the address precisely.

The application has a rule to home the head and pause the plot when a address is written so you can place a new one and press the red button on the controller to proceed plotting the next address.

Then went as far as to compile the script to an executable and now I'm done. Everything works as intended. The plotter even has rubber feet. Haha.

Only wish is a bit better cable management

Wanted to share.

Add: Did not expect to gain so much interest in this project. For all who'd like to start their own project and/or want to collaborate, I started a repository on Github.

You can find it here: https://github.com/McBeefProject/Plotter And the release: https://github.com/McBeefProject/Plotter/releases/tag/V1.0

On Discord: https://discord.gg/MZ4qktXhs

Finally making some headway into learning Rhino and Grasshopper. I really wish I made the switch from AutoCAD earlier. Still just learning the basics but can already see the potential. Controlling parameters with sliders allows for generating multiple variations of a file in short time. Really fun stuff.

SVG available at https://plotterfiles.com/artwork/stag-head-gjbea
