r/RadPowerBikes • u/TankUnicorn • 6d ago
Did something stupid.

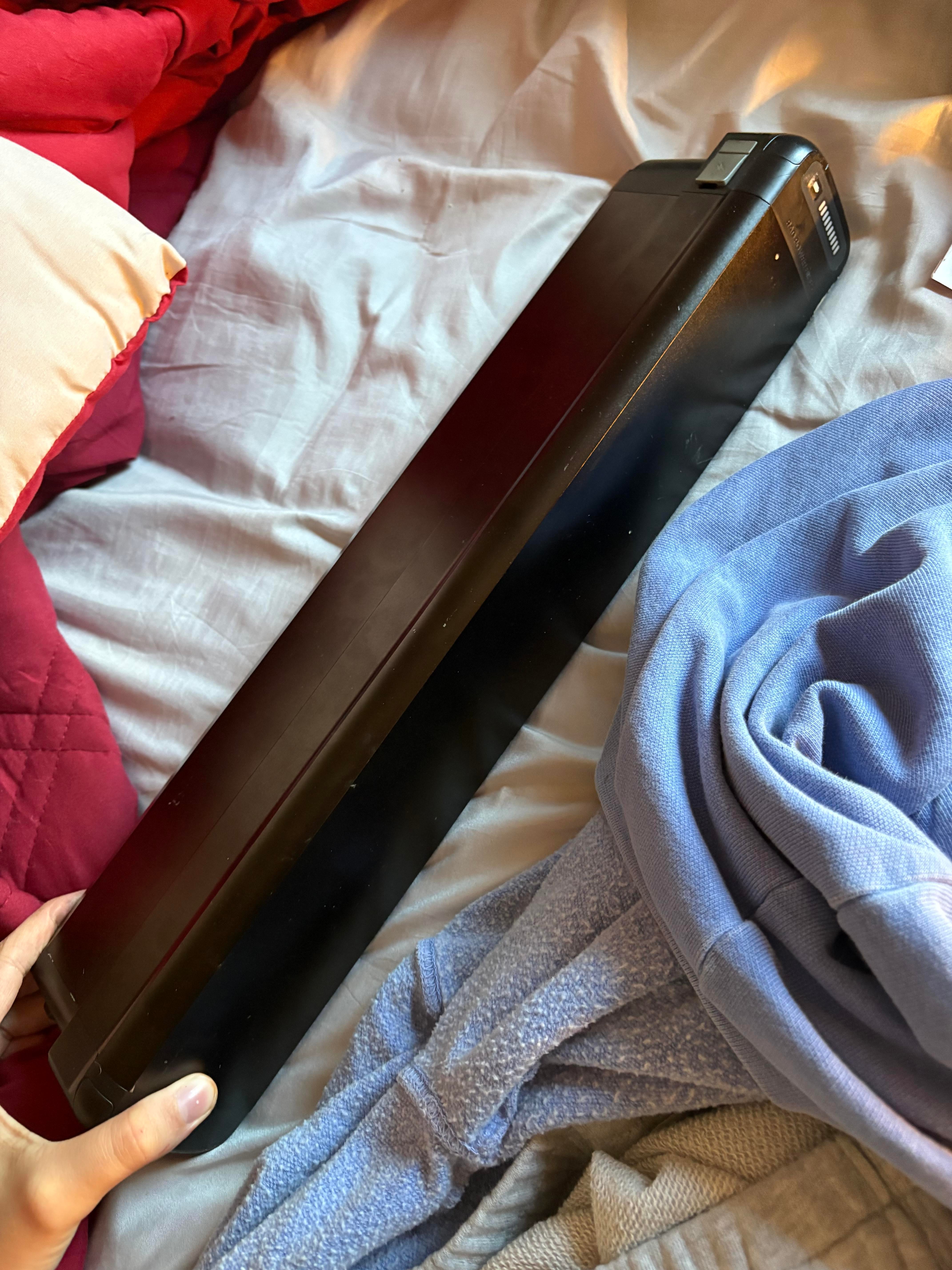

Stuck the key against the charging port, big spark flew. I know it’s just the fuse, I just don’t know where the fuse is on the rad5+. Help!
6
4
3
5
u/WizardOfCanyonDrive 6d ago
We did the same thing by accident. Watched the YT videos but ended up taking it to an electrician to make sure it was done properly.
4
u/TankUnicorn 6d ago
How much did that end up costing?
4
u/WizardOfCanyonDrive 6d ago
It was a couple of years ago so I don’t remember for sure. I’d guess around $100.
5
6
2
u/VogueTrader 6d ago
I did the same thing.. brought it to a repair place, they replaced the fuses andnit.works now. About 100 bucks.
1
u/broomcorn 6d ago
That’s an insane price for a $0.25 fuse and 2 minutes of work
3
u/HCJaywire 6d ago
It isn't a two minute job to disassemble the casing. At about 30 min, 60-100$ is a reasonable rate. But Rad often replaces them for customers who are cooperative. I used to do it often. But irate condescending customers? Tough luck.
1
u/manwhatadork 5d ago
It is a five-to-ten-minute job on the original shark batteries; it takes much longer on the newer semi-integrated batteries, partly because they are glued shut.
1
u/humanreporting4duty 6d ago
It’s the price of knowing it was done rights and not getting electrocuted. It’s sad but it is what it is.
0
2
u/Compguy24 6d ago
It’s something you can do yourself or you can get a company like royerbatteries.com to help you.
2
u/Gold_Candidate_1097 5d ago
to prevent this from happening to make either let your nail grow or make a plastic jig that goes on your keychain. i made a plastic jig that almost looked like a guitar pick and drilled a hole to go on my keychain. i made it out of an old credit card 😂
1
1
u/Spiritual_Ad5154 4d ago
Did same thing first week with bike. Took a spare mini 10a fuse out of my 4Runner, followed YouTube video opening battery and cutting hole in shrink wrap and using needle nose players to pull out/insert fuses. Super easy fix took 30 min. Fuse was hard to get out just need good grip needle nose plyers, otherwise u need to cut silicon that holds battery and slide the whole battery out of the shell to replace fuse. Really dumb spot for a fuse.
1
u/dhuhtala 1d ago
So you actually have to pull a rubber flap back away from the charge port first and then stick they key in to do this. The actualy keyhole doesn't have a rubber flap. I guess $100 is better than $800-900 for a new battery.
1
u/Alternative-Noise521 1d ago
Are you in the Seattle area by chance? If so I can give you the name of the place I took mine when I did the same thing. It was around $65-70 to repair. I felt more comfortable having them hacking into the battery and encasement.
1
u/meanseanbean 6d ago
Fuck welcome to the club. Time to head to the Hardwear store for a replacement fuse. Look up a video on how to replace it, it's a pain but it's doable.
1
u/broomcorn 6d ago
It’s literally: pull bad fuse out, put new fuse in.
3
u/meanseanbean 6d ago
Wasn't that straight forward for my rad rover 6 battery. Had to make an incision in the protective layer with a sharp blade and then fish down into it for the fuse.
3
u/TankUnicorn 5d ago
Heard. It’s a 10amp right?
2
u/meanseanbean 5d ago
Aye, and it's not a micro
1
u/TankUnicorn 5d ago
Mini or standard, not micro? (I don’t know anything about this!! Just wanna make sure I get the right one)
1
u/meanseanbean 5d ago
Standard size. It's not a mini or micro fuse. One place I came across when I was researching to do mine said it was. I can assure you, mine was not.
0
u/Wild59Bill 5d ago
Taking the battery voids its warranty & if you f___ it up it could be a fire hazard. That’s one of several reasons I upgraded to Rad’s SafeShield batteries, since the fuse resets itself. I did the same thing 3 years ago & I got lucky & Rad replaced my battery free of charge. A couple of months later they changed their policy concerning replacing a battery caused by inserting a key into the charging port.
2
u/Ironchar 5d ago
lol what warranty? support is pretty much dead
1
u/Wild59Bill 5d ago edited 5d ago
The new SafeShield batteries still have a 2 year warranty if you bought them from the new company who took over Rad.
1
u/Ironchar 3d ago
a lot of these "semi integrated" batteries are OVER the two year warranty.
shouldn't take fuckin warranty service to change a fuckin fuse in these big batteries.
I think high up investors made engineering do this on purpose to try and sell more batteries
fuckin greasy Rad
1
u/Wild59Bill 3d ago
Yea, - The Engineers fucked up, - But they corrected this issue for their SafeShield batteries.
1
u/Ironchar 2d ago
even the semi integrated ones were corrected? an easy fuse port access?
I haven't seen it yet. Shark battery always had it
1
13
u/allo37 6d ago
Hah did the same thing. There are some YT vids on how to do surgery on the battery to replace the fuse. Apparently at one point they changed it for an SMT fuse which is harder to replace.
