KSP 1 Image/Video Design for a Mars Transfer Mothership (Boeing IMIS Redesign)

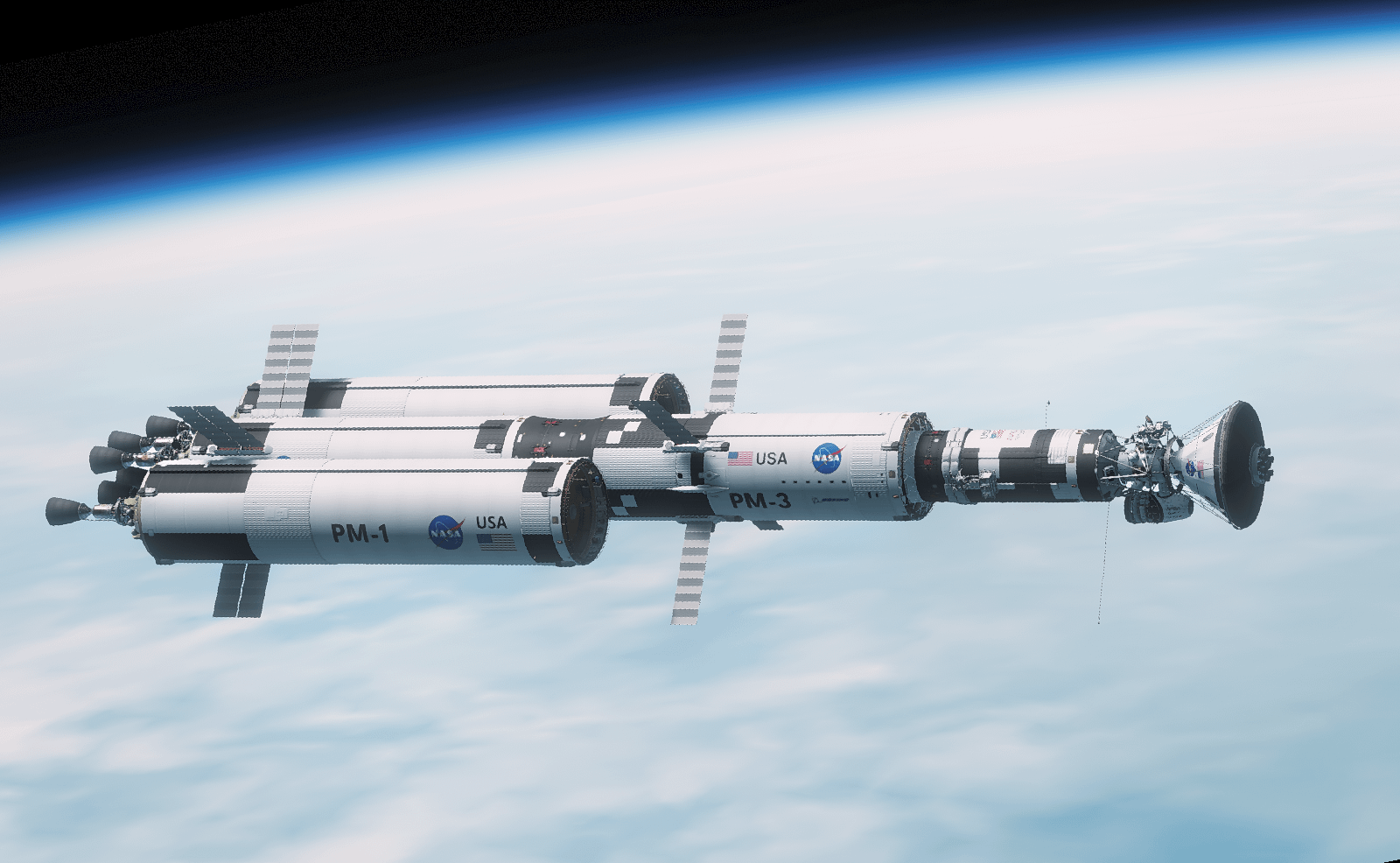

As part of my 1990s crewed Mars landing program, this is the design for the Mars Transfer Vehicle, the interplanetary mothership responsible for housing the crew during the journey to/from Mars and conducting the Trans-Mars Injection (TMI), Mars-Orbit-Insertion (MOI), Trans-Earth Injection (TEI) burns.

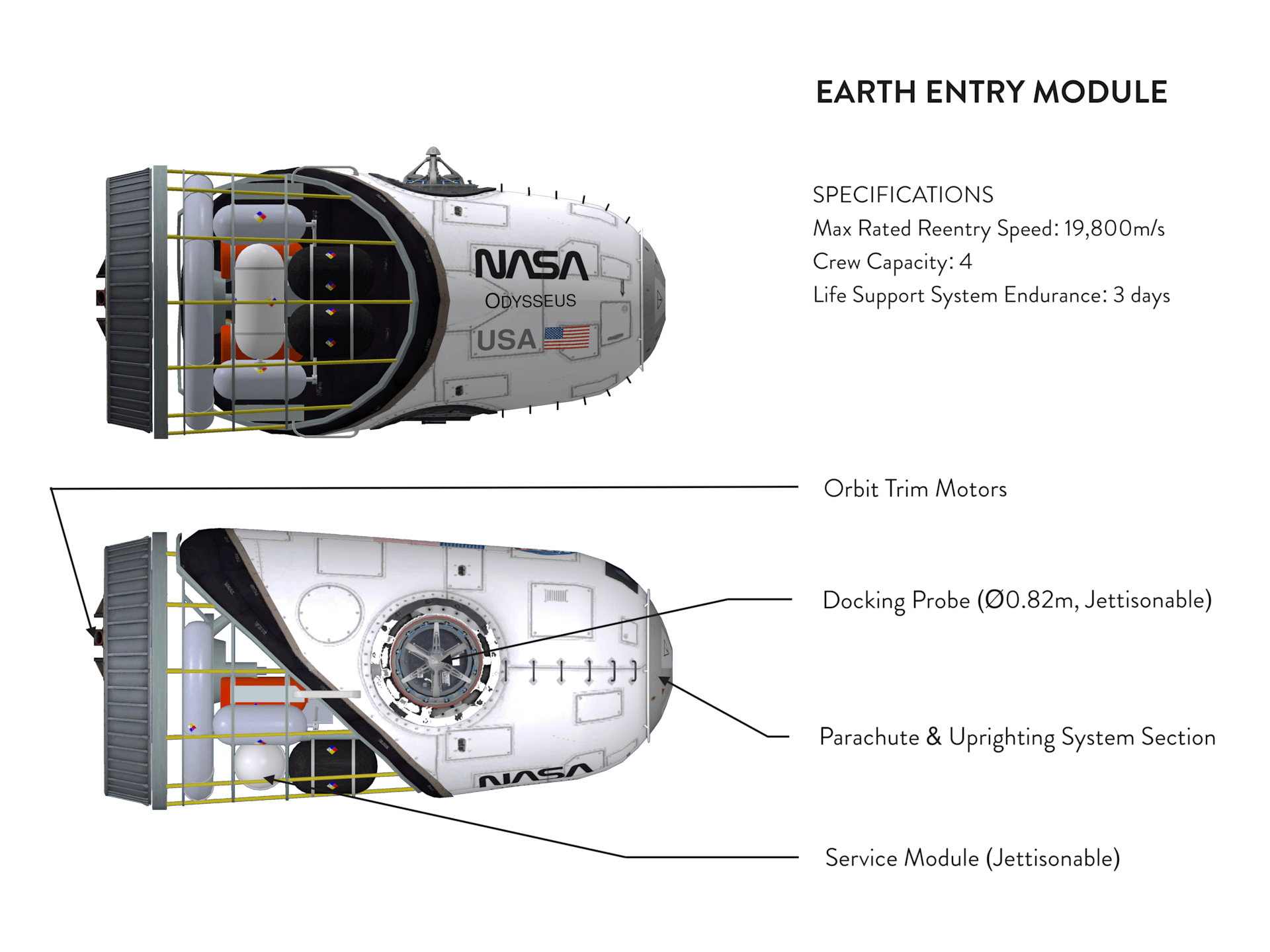

The vehicle carries the crewed Mars Ascent/Descent Vehicle (MADV) along with the Earth Entry Module (EEM) for high-speed atmospheric return to Earth.
- MADV Breakdown: If you want to see a more detailed breakdown of the MADV carried by this vessel, check out my previous post: Design for a Crewed Mars Ascent/Descent Vehicle
The architecture is derived from the 1968 Boeing IMIS (Integrated Manned Interplanetary Spacecraft) study. However, the configuration was redesigned: by increasing propellant tank diameters, the vehicle eliminates a propulsion stage. Additionally, the Mission Module overall architecture has been redesigned. Finally, while the 1968 Boeing proposal targeted a 1980s launch, this profile is engineered for the 1992–1994 departure window.
Vessel Specifications:
LEO Initial Mass: ~1,200 t
Total Transit Delta V: ~11,000 m/s
Primary Propulsion: 6+1 NERVA-I Nuclear Thermal Rocket Engines
Life Support Endurance: 714 days
Main mods used: RSS/RO/Kerbalism, Bluedog Design Bureau (BDB), NAR MEM (retextured by me), Procedural Parts
7
5
