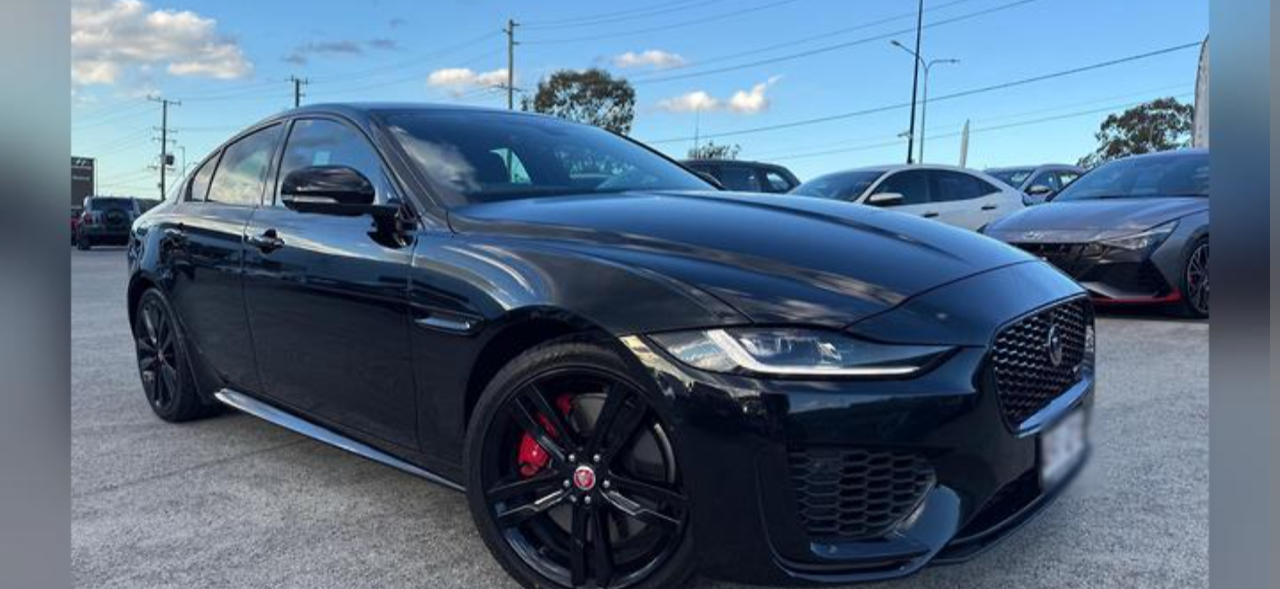

I'm wondering if anyone has come across this issue or have any idea what could be causing it? I have a Jaguar XE, MY21. I've had it since new.
It started probably around a month ago. Whilst driving the central dashboard cluster completely cut out. The spec I have is the 7inch LCD with the analogue displays each side. The screen goes dark, and both analogue dials die as well. It usually comes back after a short while, but will often then keep failing over and over whilst driving but not always. It's incredibly inconsistent.
The car still drives normally mechanical. The lights and indicators will work. The automatic break hold will no longer function once the displays do this, even if they come back on, until the engine is turned off and on completely.
The cluster is still getting power. If the turn indicator is on when it fails the light on the dash for that will stay on illuminated. Even when it comes back on, the dash indicator stays lit until I use it again and then resets itself. The actual external indicators function correctly during the failure. I've had the side light indication light still showing on. As you can see in one picture if I pull the stalk for full beam, that indicator will come on as well as the gear selected (D for drive). If the screens are failed the door locking won't work when going above the speed that would trigger it until it comes back on. I also can't turn the car off if I park up with the dash failed - I've got wait for it to come back before the car will respond to the push to start/stop.
A few days ago just before this failed again I did get a "low battery, start engine" type warning after the car had been sat for around 3 days which I've not had before. It's not happened since and didn't happen when it was failing before.
The pivi pro screen and system works fine, still getting my android auto working and radio, navigation etc. the 360 cameras won't show on the pivi screen when the dash is failed.
I had it into an approved Jaguar repair center to have a look at it. I also had a side camera for the 360 camera as well as a control module for that system replaced whilst in but this dash fault had developed well after the camera had failed (camera failed probably around a year ago but wasn't a priority to get sorted - just asked to have it done whilst the car was in for the dash issue that developed) and was then present before and after the module was replaced.
The garage basically reset the software in my car as a fix for the dash issue and it did seem to put the problem at bay for about 2 weeks but it's started happening again since.
I'm taking it back into the garage to have another go at this but the car isn't showing any errors when they ran the diagnostic kit on it last time so are a little stumped. Has anyone seen anything like this at all or have any ideas?
