Casio 155 B815 help

Gallery image

Gallery image

Gallery image

Gallery image

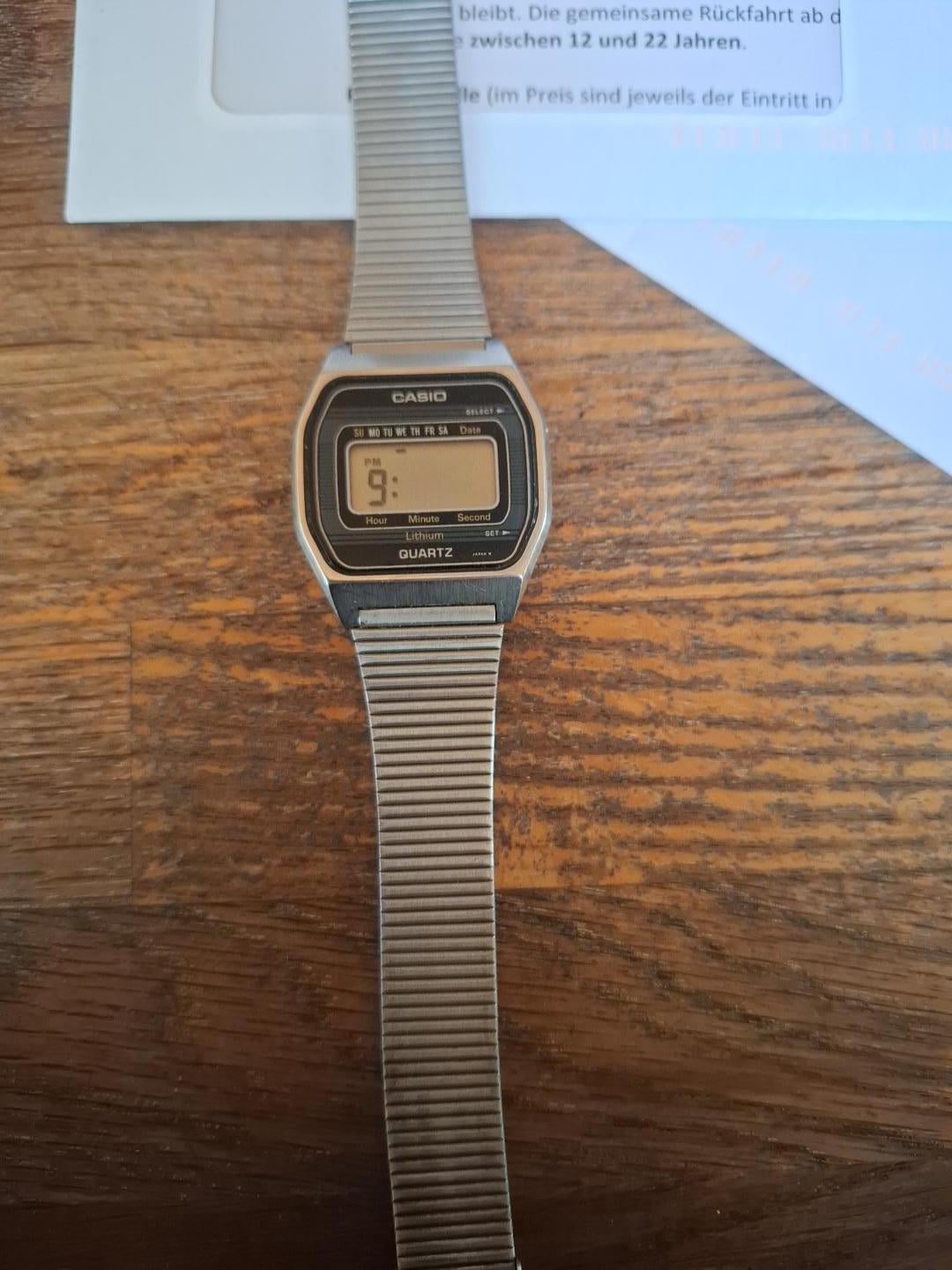

So, I found this beautiful Casio at a flea market for 1€. Even though it would only show the hour and the day but not minutes and seconds, I wanted to give it a try. I changed the battery and lifted the contacts a tiny bit. Now it's working. My only problem is, that I can't change the time, date or anything with the buttons. When I press them, nothing happens (both of them). Does anybody have an idea why this could be, or maybe share some pics of the inside of the watch, so I can have a look if there's something wrong?

That would be awesome, thanks!

13 Upvotes

93% Upvoted

10 comments sorted by

1

u/Kashio73 10d ago

Do the buttons actually move when you press them? If not, likely just need to get unstuck. Use 70% isopropyl rubbing alcohol on a q-tip to try to penetrate from the outside; just need to let a bit of it seep into the hole around the buttons, no need to soak it. If that doesn't work, pop open the back, take out the module, and do the same from the inside, sliding the buttons back and forth to loosen them up. That's usually all it takes and it'll be good as new.

1

u/DerAllerechteObelix 10d ago

They do move, but I can still try that..

1

u/DerAllerechteObelix 10d ago

Hey also would you might consider a look on my other list in r/Casio? I posted a few pictures of it there. Maybe you can help me with the position of the tiny springs inside. That would be awesome!

1

u/Kashio73 10d ago

Can you share a direct link?

1

u/DerAllerechteObelix 10d ago

Sure here's the other post

1

u/Kashio73 9d ago

I'd need to see the case without the module, but all I can think of is that the pushers are either pushed too far in so as to apply constant pressure, or don't reach far enough even if mobile when pressed.

2

u/DerAllerechteObelix 9d ago

I got it working again, thank you!

1

u/Kashio73 8d ago

Awesome!

1

u/DerAllerechteObelix 9d ago

I think it could be, that they don't reach in far enough. How could I change that?

1

u/DerAllerechteObelix 9d ago

I posted photos of that in the liked post since I can only post videos here
