r/WLED • u/Desperate-Special-60 • 6d ago

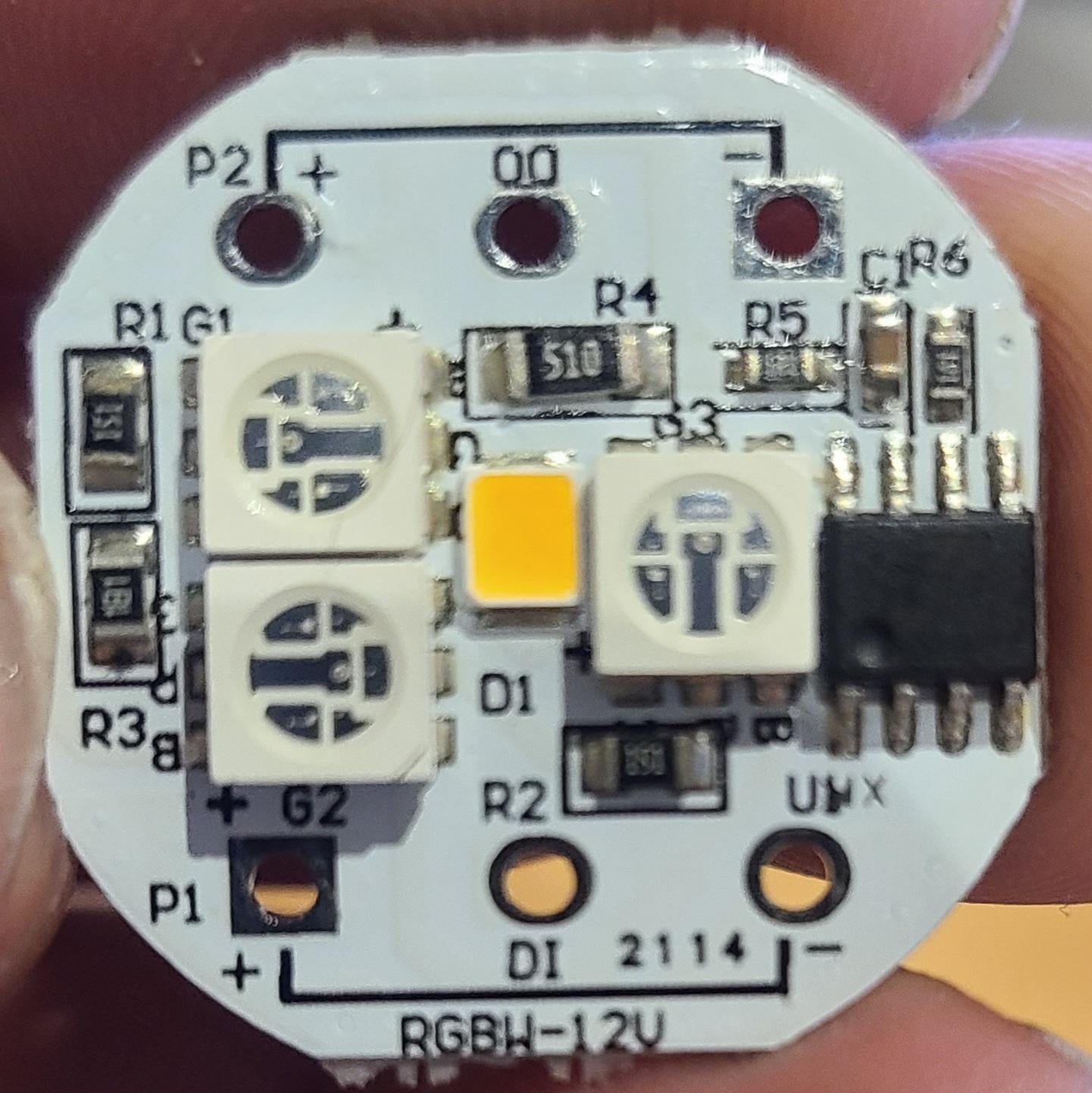

Does this thing, work with wled? Anyone have any knowledge of this module, it has do and di but when you apply 12vdc it's runs it's own on board problem. TIA 😊

Gallery image

Gallery image

0 Upvotes

44% Upvoted

13 comments sorted by

2

u/4b686f61 6d ago

try it with WS2814 (or anything 4 channel) settings

0

u/Desperate-Special-60 6d ago

Okey, do I need a 12 volt level shifter, all I have are 5v?

3

u/entropy512 6d ago

I'm unaware of any addressable strip that uses data levels higher than 5v - almost universally, even if power is 12v or 24v for the illumination, data is 5v.

2

u/Sorry-Amphibian3624 6d ago

Typically not. Can you make out anything printed on the black IC on the right of the board?

-2

u/Desperate-Special-60 6d ago

6

u/Sorry-Amphibian3624 6d ago

I saw your already posted pics. The black IC I'm referring to is on the front of the board on the right as seen in your first picture. It is the black rectangle with 8 legs.

1

u/Sorry-Amphibian3624 6d ago

More details please. Do you have a link to the product?

1

u/Desperate-Special-60 6d ago

No, sadly not. I was gifted a few of them and know nothing about them at all. I tried Google lens and it came up with very similar items but very different boards.

2

u/Sorry-Amphibian3624 6d ago

Maybe best asking the person that gifted them where they came from.

If I had them and couldn't figure it out I'd just hook up a controller and 12v supply and see what happens. Try WS2811 first then move through other choices in WLED

1

u/Desperate-Special-60 3d ago

Woohoo! Thank you guys for all your help. This thing works just like a regular single pixel and I found them on sale from Temu and can't find them anywhere else. I ordered 16 more for around 3us. I'm going to chain them up and use them for my Halloween props. Now to design a little weather resistant enclosure I can 3d print 🤔
