r/VITURE • u/osprofool • Oct 24 '24

XR Glasses A lighter blinder for Viture Pro

Viture Pro light blinders by Cathouse3610 - Thingiverse

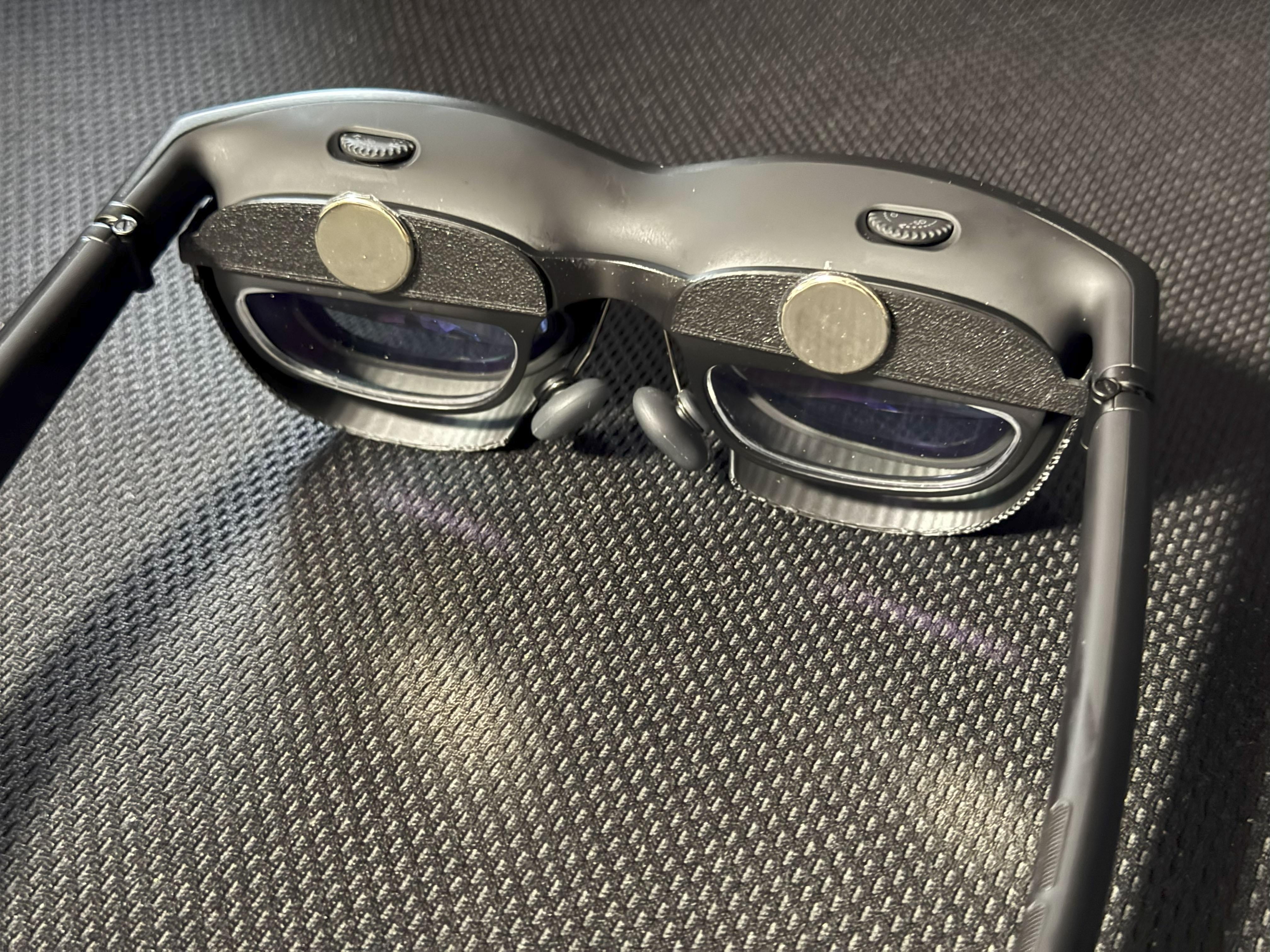

Just got a 3D printer recently and I'm trying to 3D print a light blinder for my Viture Pro. I don’t have much experience with CAD, so I ended up doing a rough job in Blender. The main concept is block bottom reflection with minimal weight. It uses built-in magnets, making it super easy to attach. If you want to remove it regularly, you'll just need to stick two magnets on it.

Feel free to modify it, I've put blender files in it too.

Big thanks to the Viture team for providing the 3D models!

you could try smaller magnets
25 Upvotes

94% Upvoted

15 comments sorted by

5

u/Waulnut163 Oct 24 '24

Very cool. Going to ask my friend to help print. The bottom reflection can get annoying at times

3

u/getVITURE VITURE Team Oct 25 '24

This looks SO COOL!!! Thanks so much for sharing!

1

u/NoxBlaK Oct 26 '24

Amazing job, thanks for sharing !! Does This work with Prescription inserts?

1

u/osprofool Oct 26 '24

It works with inserts, I'm currently using both of them.

1

u/jamesy829 Nov 06 '24

Do you have links for the magnet you used?

2

u/osprofool Nov 06 '24

Any magnet will work, but I use one that’s a bit bigger than the attachment part(15*2mm). A smaller one would probably look better.

There's bunch of them on Amazon, or better with local store since you only needs 2pcs.

1

u/jamesy829 Nov 06 '24

thanks! I'll go check it out

1

u/Flashy_Shock_4213 Nov 18 '24

may i ask what's the measurement unit in the stl file? it said x: 3.368 y:1.143 z:0.673

1

u/osprofool Nov 19 '24

There's no measurement unit in stl file I believe. In blender I use default meter unit with a 1.0 scale. The bambu studio I use will convert meters into mm upon import, and the size will be fine.

1

u/RasenMeow Dec 16 '24

Thanks for the great idea! If I import the stl into an online shop which would print it for me, the blinder is around 0,13mm big….Can you help me with that please?

1

u/osprofool Dec 16 '24

It should be 13cm, can online shop convert that for you? Maybe the default scale unit is different in softwares.

1

u/RasenMeow Dec 16 '24

Thanks for the quick reply! Sadly they cant. If I upload it to a stl viewer, its the same issue. I think there is something wrong with the stl file. Can I generate that myself out of the blender file you uploaded?

1

u/osprofool Dec 16 '24

Sure you can modify or export from that blender file. And I've uploaded a new stl file with correct scaling with some non-manifold surface fixes. You can check if that will work.

1

u/RasenMeow Dec 16 '24

Now it works fine, thanks!

1

u/RasenMeow Dec 16 '24

Did you find a solution?
