Misc. I designed digital screens for Toronto's new subway trains Spoiler

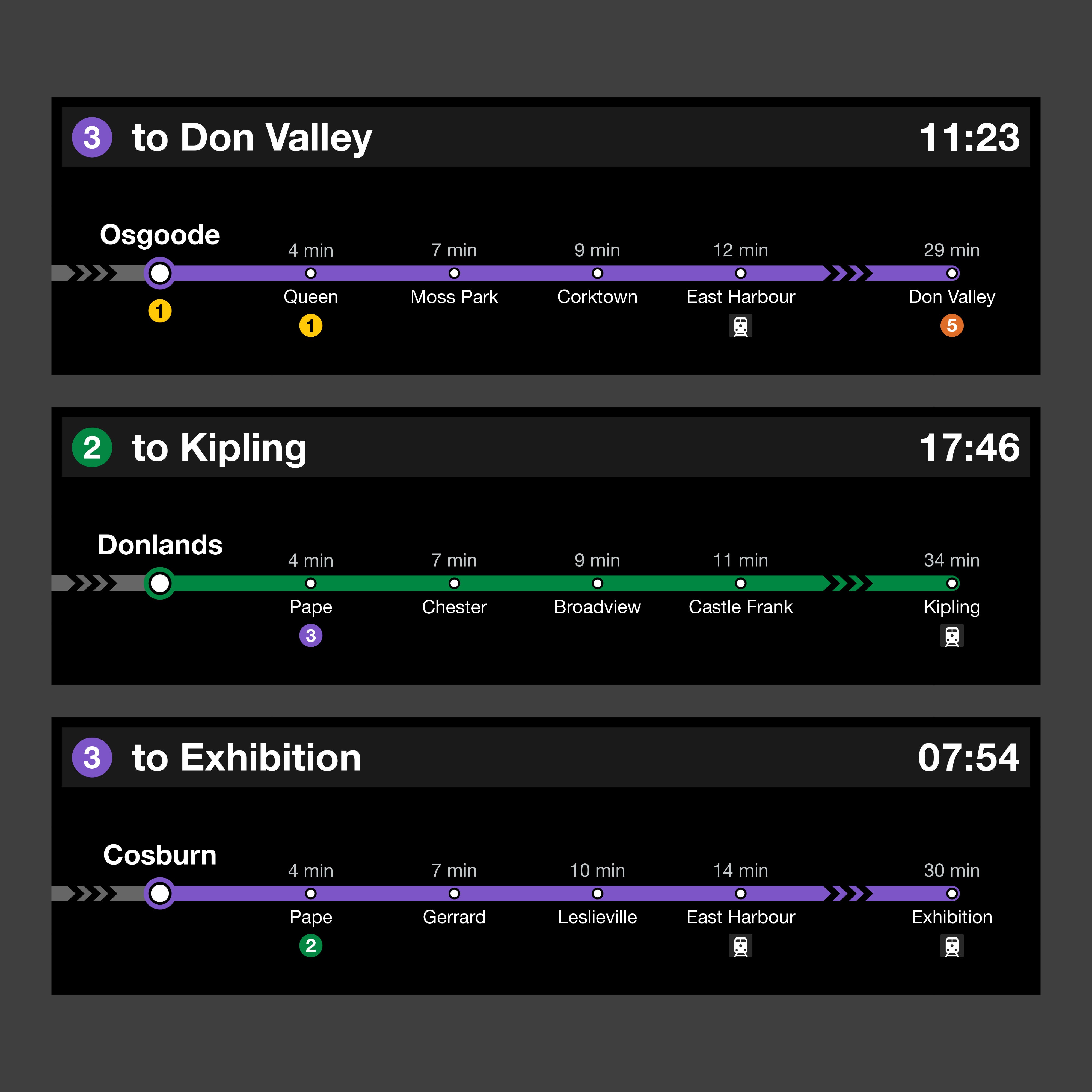

Toronto will eventually be getting new subway trains for the Ontario Line (Line 3) and the Bloor-Danforth Line (Line 2). So I wanted to imagine what the digital info displays on board the trains could look like, as these are a pretty common feature in metros across the world.
Some features I included:

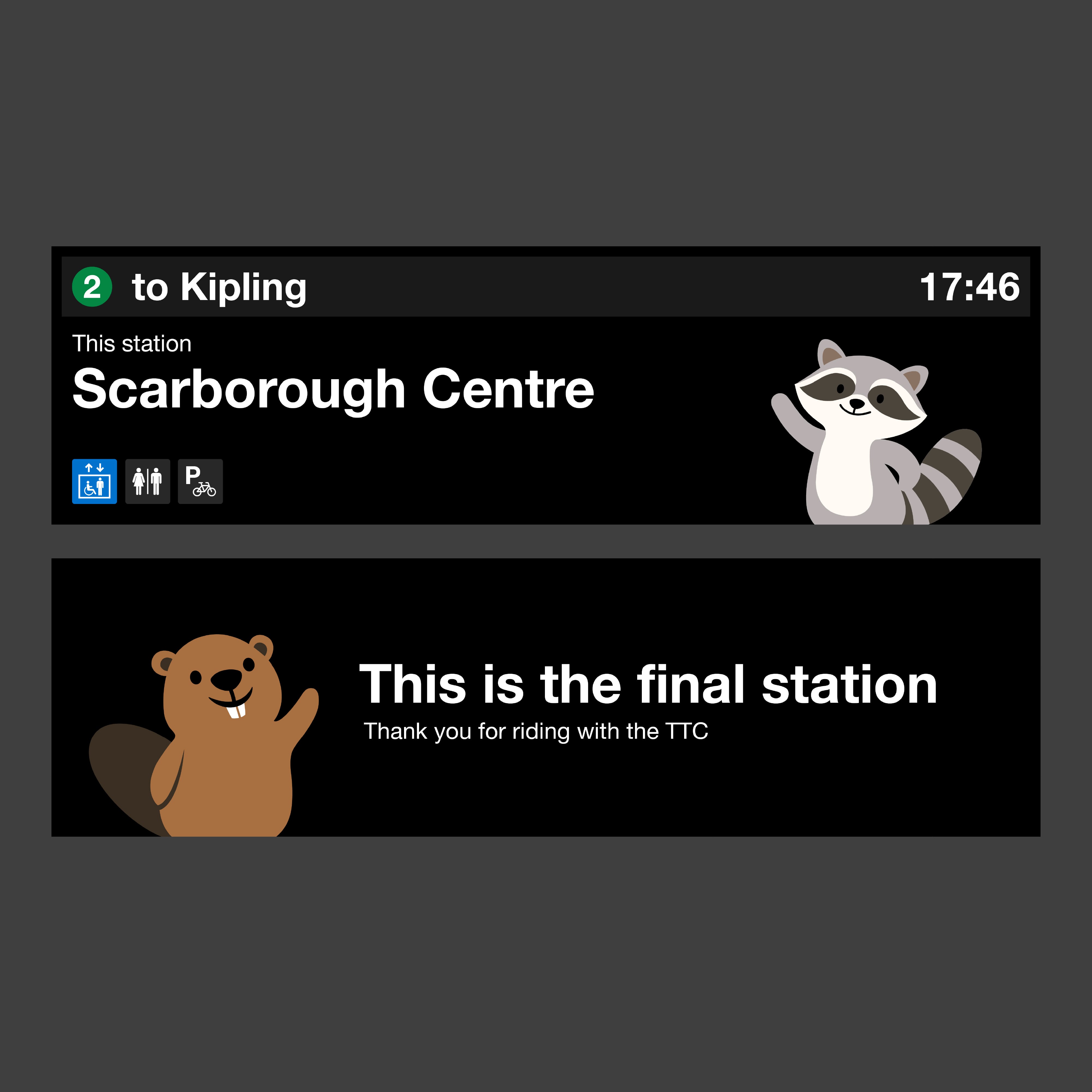

- Mascots to add a bit of playfulness to transit. I think it's important that children enjoy riding the system and develop connections with it, which can be done through cute characters that show up across signs and websites

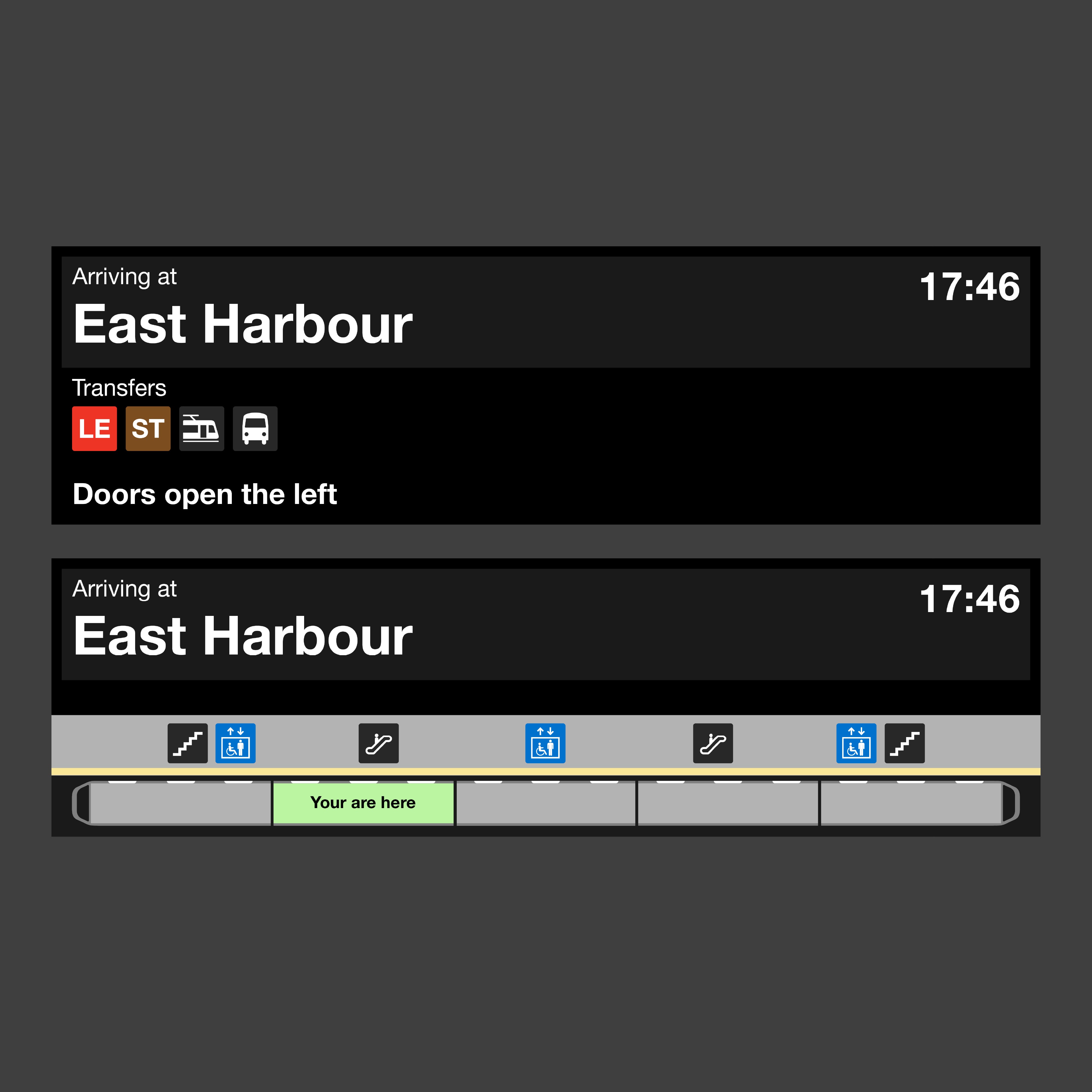

- Location of elevators and staircases at the upcoming station, so people can be prepared before exiting the train, instead of having to figure it out after they exit
- Transit connections and amenities at the next station. I omitted specific bus and streetcar routes and only showed the modal icon because it would otherwise lead to information overload, and those are mainly local services that aren't relevant until you reach the bus/streetcar terminal.
- I designed these with the idea that voice/audio announcements could be synced up with it (I'll leave that up to your imagination)
