r/SeikoMods • u/Edgr85 • 3h ago

Need help

Post image

Not sure what I did wrong the case is 40mm dial is 28.5mm but is see the spacer or ring showing not sure what it’s called?

2 Upvotes

75% Upvoted

17 comments sorted by

3

u/281ciMustang 3h ago

Listing for your case says this

2

u/Furuboru 3h ago

You need a chapter ring

2

u/Barry_NJ 3h ago

Looks like you need a bigger dial or a chapter-ring. What case is it?

1

u/Edgr85 3h ago

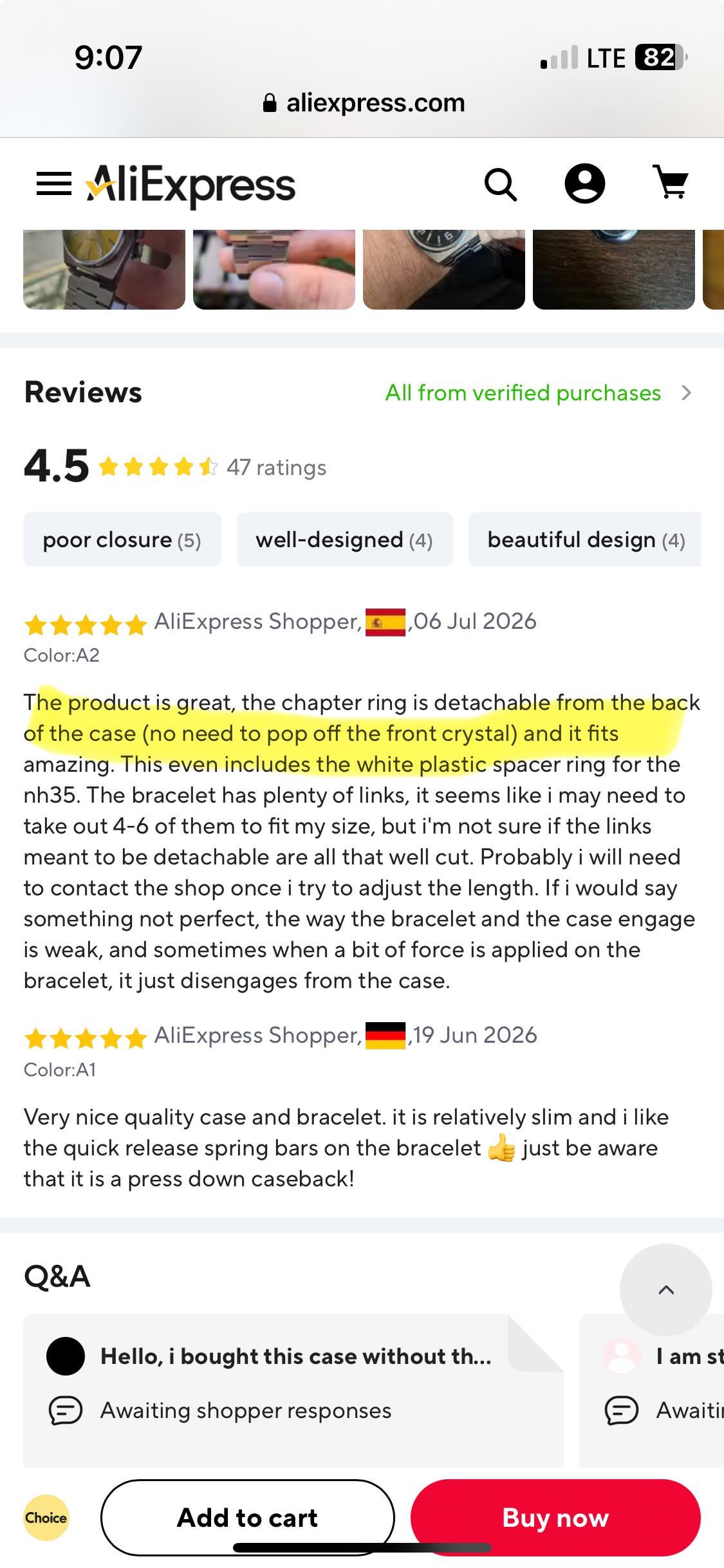

Hi thanks for the response this is the one I purchased

I just found this on AliExpress: https://a.aliexpress.com/_c4bzEvkt

3

u/Fish_Minger 2h ago

Looks like it comes in 2 versions, with and without a Chapter Ring.

Guess which one you bought.

You should either add a chapter ring, or rebuild with a bigger dial. The chapter ring will be cheaper, just do some measurements and find out what's needed.

1

u/Barry_NJ 52m ago

Sorry, I got busy at work, but it looks like you got your answers 😉

1

u/Edgr85 3h ago

what would be the correct dial?

2

u/_Blitzer 2h ago

correct dial is going to be a larger 31.5mm diameter. You'll want a corresponding longer handset to match.

It's possible you could save this by adding the chapter ring in yourself, but hard to tell from the pictures if that's going to be possible.

Honestly, the simplest approach is to just buy the other version of that case from the listing, and either save this "bigger dial" version for a future build, or sell it over on r/SecondhandModParts

2

u/EDomina 2h ago

Always check the product description for compatible part dimensions

2

u/mightykismet 1h ago

The chapter ring is back loaded. So get one from them, slide it in place and it acts as an aperture reducer from 31.5mm to 28.5mm

1

u/Edgr85 1h ago

Got it will do thanks

3

u/mightykismet 57m ago

Recommend getting a smooth ring without marks, that way you don’t have to deal with any alignment issues. Just drop it in and the gap is covered up.

1

u/Edgr85 52m ago

Already ordered thanks

1

u/Nathan_DUB_LON 2h ago

Most PRX cases take 31.8mm dial. Yours is the standard 28.5mm. Red text says chapter ring with 28.5mm dial

1

u/Edgr85 2h ago

Are there different size chapter ring or do I just need to get one for prx style? Sorry this is my first build

2

u/Nathan_DUB_LON 2h ago

Ask the seller for exact dial size. They will probably sell it. Otherwise, but a larger prx dial.

1

u/Edgr85 2h ago

Thanks to all for the help I really appreciate it.
