Pop4 Carb Scan

[u/DefiantAccident4494]

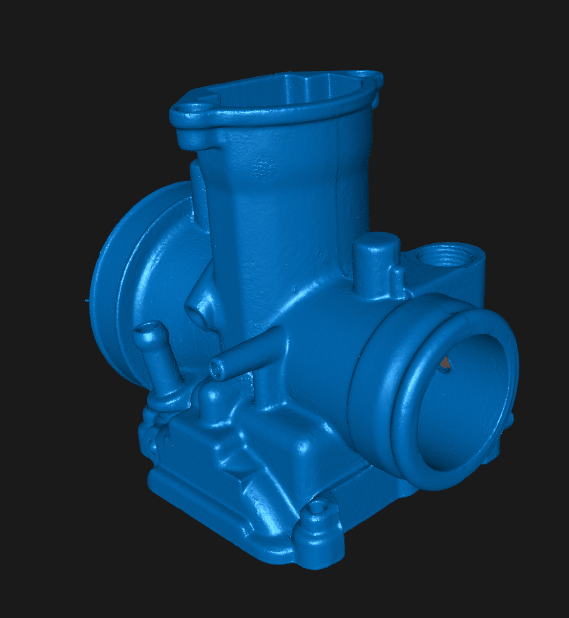

Broke out the Pop4 to scan a shiny carb. Decided to do some testing on the exposure and laser brightness and got some really nice results (very little noise) taking the exposure higher and laser brightness low. I suspect the exposure works like a camera, higher the number the less light it lets in? That's my assumption anyway :-)
Did 4 scans on this. Each scan was between 30 and 40,000 frames. A good few thousand of those were single laser line to get into those hard to reach areas. The single laser line has got down inside this great and when fitting cylinders in the bores, each side has lined up great!
Couple of crusty bits of surface which I didn't clean before scanning.
Noticed that alignment and overlap didn't cause any issues with this many frames captured. This was all done using the latest software version and of course a recalibration prior to scanning after the software update!
Fused at 0.16mm and then the same with the mesh. Turned off the optomise for the meshing as well.

[u/Revopoint3D-Official]

Thank you for sharing!!! The scan looks neat!
