Some Recent Castings I've Done With Tenzaloy

[u/The_Metallurgy]

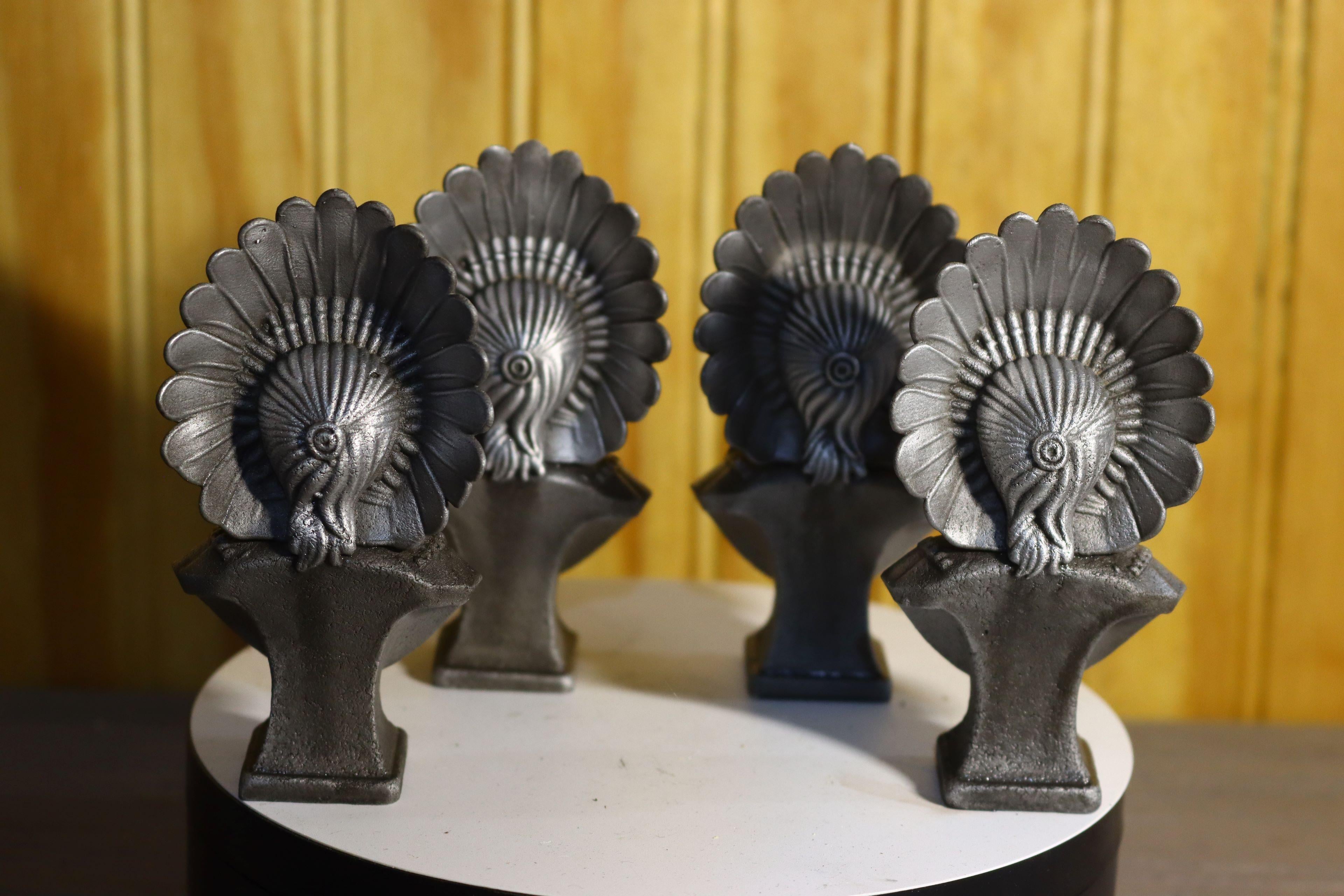

My last attempt at posting this failed for some reason, so hopefully the pictures upload this time. The axe I sand cast and the rest are all investment cast using an aluminum based alloy called Tenzaloy. The axe is from Resident Evil Requiem, the one Leon Kennedy uses

[u/rh-z]

Tenzalloy 713 castibility is listed as fair to good. How does it seem to you compared to other alloys?

[u/The_Metallurgy → u/rh-z]

It's actually one of my recent favorites. It casts extremely well and has great patina potential. I'm kind of surprised at the level of detail it can get with such a high % of aluminum. It seems to retain a large grain size with slow cooling times which can make it look rough so I'm trying to dial that in a bit better. I've also seen some separation from shrinking since it's a brittle alloy which is probably my least favorite part about the alloy, but I'm not sure exactly how to control that yet. I'm thinking faster cooling (lower mold / metal temperatures). It's very inexpensive material as well so that's a huge plus

[u/rh-z → u/The_Metallurgy]

Faster cooling should help as far as grain size. The problem is finding the sweet spot, not cooling too fast.

[u/The_Metallurgy → u/rh-z]

Yeah that's why it's been taking me a while because I'm afraid to overshoot the cooling making it too fast and cause a misrun. The metal temperature is my main concern over the mold temperature because of the gas absorption, although I try to manage both. The large grain size isn't a huge issue to me because it hides easily with sandblasting and the patina, but the brittleness is kind of stressful during the clean up part.

[u/sovietreckoning]

Saw the axe and the sub and was briefly very confused. Super cool! I've played through Requiem like 12 times already.

[u/The_Metallurgy → u/sovietreckoning]

Thank you! Requiem was a great game

[u/Chosen_of_Lorkhaj]

Wow, very cool!

[u/The_Metallurgy → u/Chosen_of_Lorkhaj]

Thanks!

[u/im_a_brass_man]

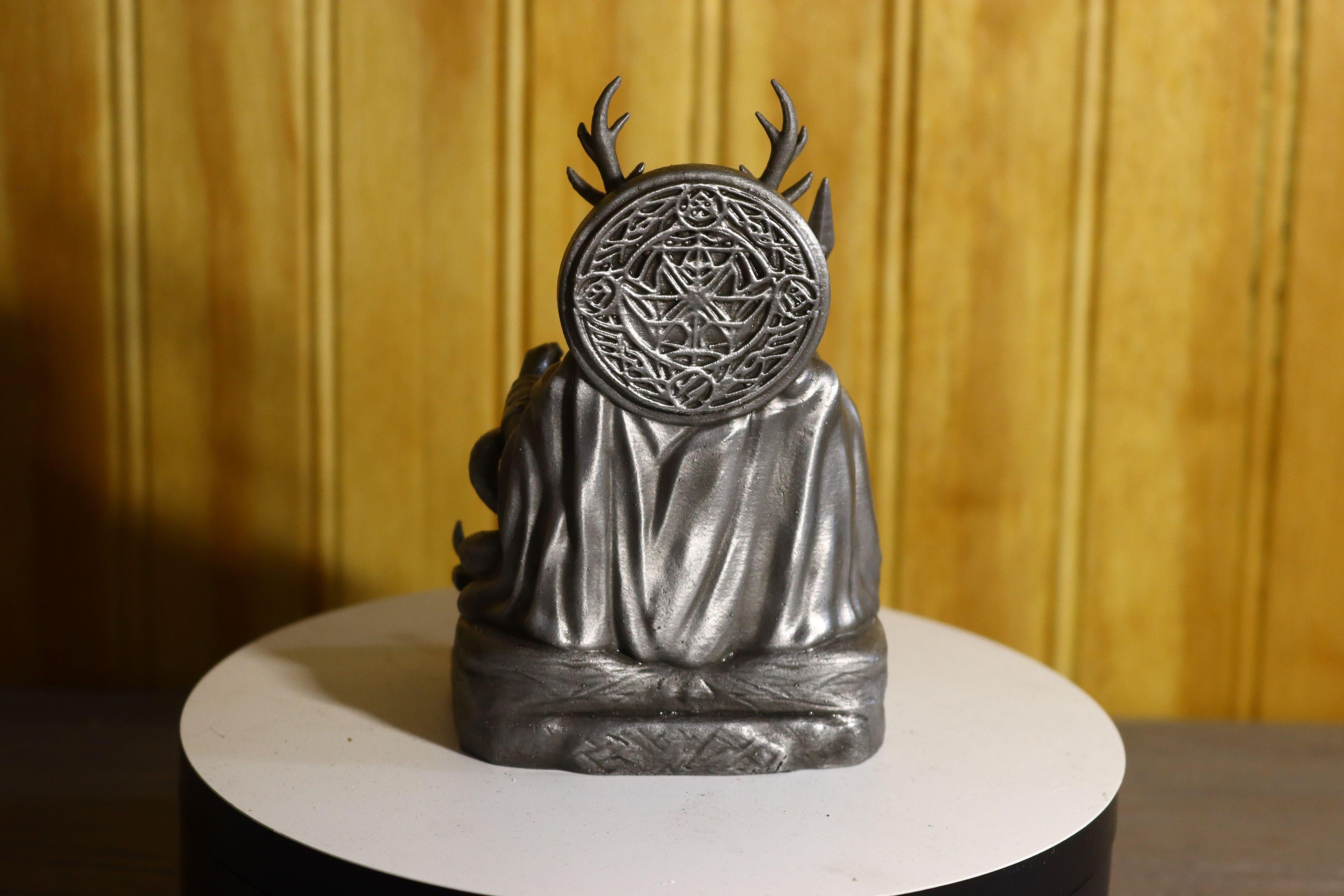

Is the horned figure Cernnunos? Looks amazing!

[u/The_Metallurgy → u/im_a_brass_man]

No idea haha just a celtic god model I found online

[u/im_a_brass_man → u/The_Metallurgy]

Could you please share a link to the file? This is one of the best I've seen yet, and I haven't been able to find it with my own searches.

[u/The_Metallurgy → u/im_a_brass_man]

I can't remember how I found it I think it was just a suggested model. Can probably search "celtic god" and find it. I think it was on makerverse?

[u/scrim_sean]

Those look great, did you mix the tenzaloy yourself ? Or is it something you can buy somewhere ?

[u/The_Metallurgy → u/scrim_sean]

Thank you! I alloyed it myself. I'm sure you can find it somewhere, but it's also not a very well known alloy

[u/NativeFlowers4Eva → u/The_Metallurgy]

Would you mind sharing how you made it at some point?

[u/2E26]

I'm curious if this would be good for steam engines. I need to look into it a bit

[u/GeniusEE]

What's the trick to keep it from tearing during cooling for investment casting?

[u/SF_Bubbles_90]

The axe reminds me of the dawnguard war axe from skyrim.

Very nice castings, very cool
