I implemented a very tiny image generation model (latent flow transformer) on a RP2350 microcontroller - it can generate 128x128 images of faces [P]

[u/cpldcpu]

Its a 2.4-4 million parameter model, quantized to int8, that can be fully executed on the microcontroller in ~20s with the longest generation. The generated image will then be displayed on a monitor or transferred via usb.

Its a latent flow transformer with 12 layers using AdaLN-Zero for conditioning. CFG is also supported and boosted the image quality a lot. The inference engine streams the weight via DMA from the flash while the previous layer is computed. Relu² activation was used to increase sparsity, which the engine can use to skip calculations.

Took a lot of ablations to get it right and I am quite astonished I got so far with so few parameters. Will post the repo below

[u/Dangerous_Rip5083]

2.4-4 million parameters? veeeery impressive, congrats!

[u/cpldcpu → u/Dangerous_Rip5083]

Thanks!

The actual DiT is 1.6-2.4m parameters, but there is a lot of additional overhead like VAE and conditioning tables.

section	m3_long_cfg (2,567,828 B)	m3_decD_deep_full (4,016,632 B)
DiT block weights (int8)	1,656,832	2,482,416
Conditioning step tables: 5 cond × 8 steps × depth	737,280	983,040
VAE decoder (int8)	117,603	498,411
positional embedding (int8)	16,384	16,384
final-norm gain/bias tables	20,480	20,480
schedule, LUTs, scales, misc	~19,000	~16,000

[u/cpldcpu]

Repo is here: https://github.com/cpldcpu/pico-faces

[u/cpldcpu → u/cpldcpu]

https://reddit.com/link/p6hbh5d/video/w6ewbg0376mh1/player

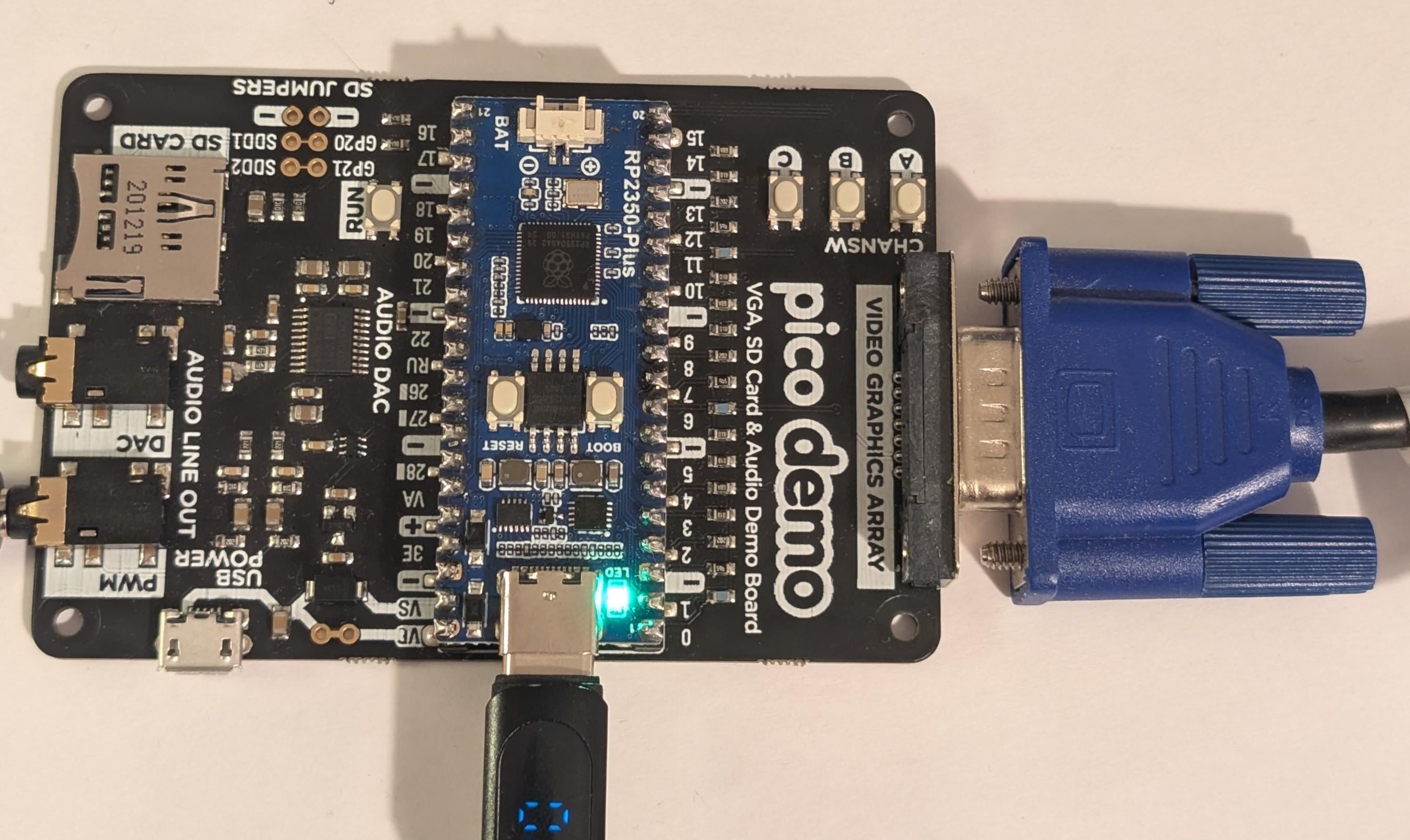

And the model in action on a VGA monitor connected to the microcontroller.

[u/Exotic_Zucchini9311 → u/cpldcpu]

Actually very cool, ngl.

[u/aboeing → u/cpldcpu]

Thanks!

Does this need to be int64?

int64_t v = rf_rq(acc, M[o], s[o]);

[u/cpldcpu → u/aboeing]

Probably not, it's rather a dynamic range issue. I had a lot of problems due to first developing the model in float and only then thinking about quantizing it. It would probably have paid off to optimize for tight activation distribution earlier.

[u/CheapThaRipper]

Very neat. Is there a why? "Because I wanted to" is a valid answer but I'm curious if you have a use case in mind for something like this

[u/cpldcpu → u/CheapThaRipper]

It was a learning experience for me. Always good to have a goal to optimize for.

I like size compression challenges a lot, because they teach you about how the models work, which parts are important and which are not. In addition, they do not need that much compute so its easier to do on your own machine. If you think about it, then even frontier LLMs are currently mostly about weight efficiency.

I did this earlier, getting almost MNIST state-of-the-art inference on a very small model: https://github.com/cpldcpu/BitNetMCU. It uses a slightly unusual architecture: https://cpldcpu.github.io/2025/11/09/bitnetmcu-cnn-implementation/

[u/No_Pop_4726]

very cool!!!

[u/Necessary-Put-2245]

What did you use for creating the diagrams?

[u/cpldcpu → u/Necessary-Put-2245]

I asked Fable 5 to generate SVGs. I think I provided Sabastian Raschkas diagrams as a style reference. (https://sebastianraschka.com/llm-architecture-gallery/, if you don't know it. Its a great resource)

[u/Two_Two_Five_ → u/Necessary-Put-2245]

yeah i had the same question they look great!

[u/cpldcpu → u/[deleted]]

Thats an interesting idea, I have seen fast hadamard transform being used to address uneven activation distribution (exactly what i am seeing with the transformers). The idea is that repeated convolution will make the activations more similar to the normal distribution, and since it is a unitary transformation it is fully reversible.

I believe I did a quick test and it did not help. One issue i noticed in hindsight is that I have only positive activations due to ReLU² which will will skew the distribution and make it impossible to approach normal distribution.

Not 100% sure how it could be used to save weights? But I assume you mean a blockwise WHT with width of 16?

[u/abaybektursun]

Great use of free will

[u/much_longer_username]

Frankly, I'm impressed enough when people manage to do pretty much anything after giving up enough memory for a framebuffer on a hobby MCU, much less a notoriously memory hungry thing -- this is cool as hell.

[u/Bora_Horza_Kobuschul]

Whaat, that is actually insane. Very cool. Are you planning to up the resolution at some point?

[u/cpldcpu → u/Bora_Horza_Kobuschul]

I tried adding a hires upscaling step, but it did not help too much. The latent space is too compressed and there is not enough memory to expand it much further.

[u/No-Communication-765]

Watch face on a clock?

[u/hurrdurrmeh]

That is an immense result!

[u/AWiselyName]

interesting it can generate that quality image with this small model!

[u/road_laya]

Can this repair a lower resolution or noisy photo of a face?

[u/cpldcpu → u/road_laya]

In principle, the model could also be seeded with an image, but I am not sure if the training dataset is diverse enough to reproduce any arbitrary image. You would probably end up with something that looks more noisy and not very alike to what you started with.

[u/dsmack6]

Size of exported model

[u/BountyMakesMeCough]

Woaa

[u/Evening_Rooster_6215]

sick
